Membrane stack

For ED system

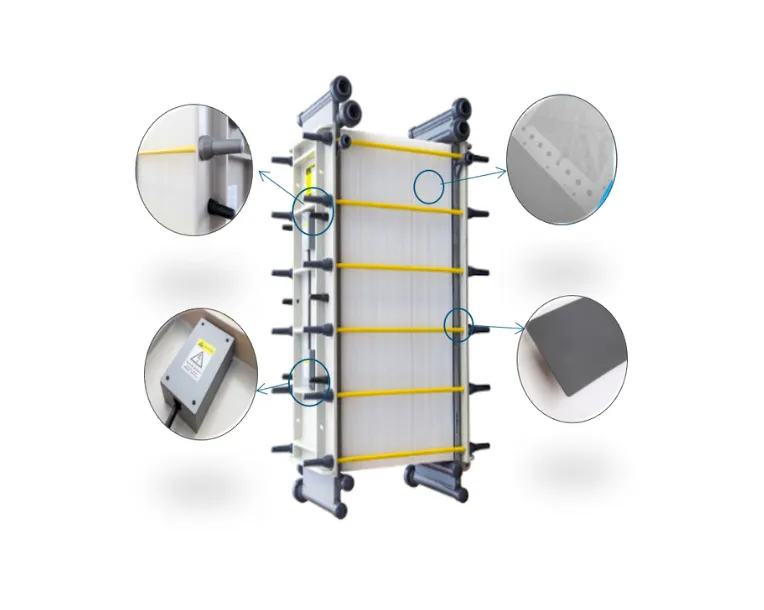

Membrane stack is the core part of the ED system.

• Series I -AM membrane

• Anti-corrosion electrode

• Well-designed spacer

• Guide rods avoiding deformation

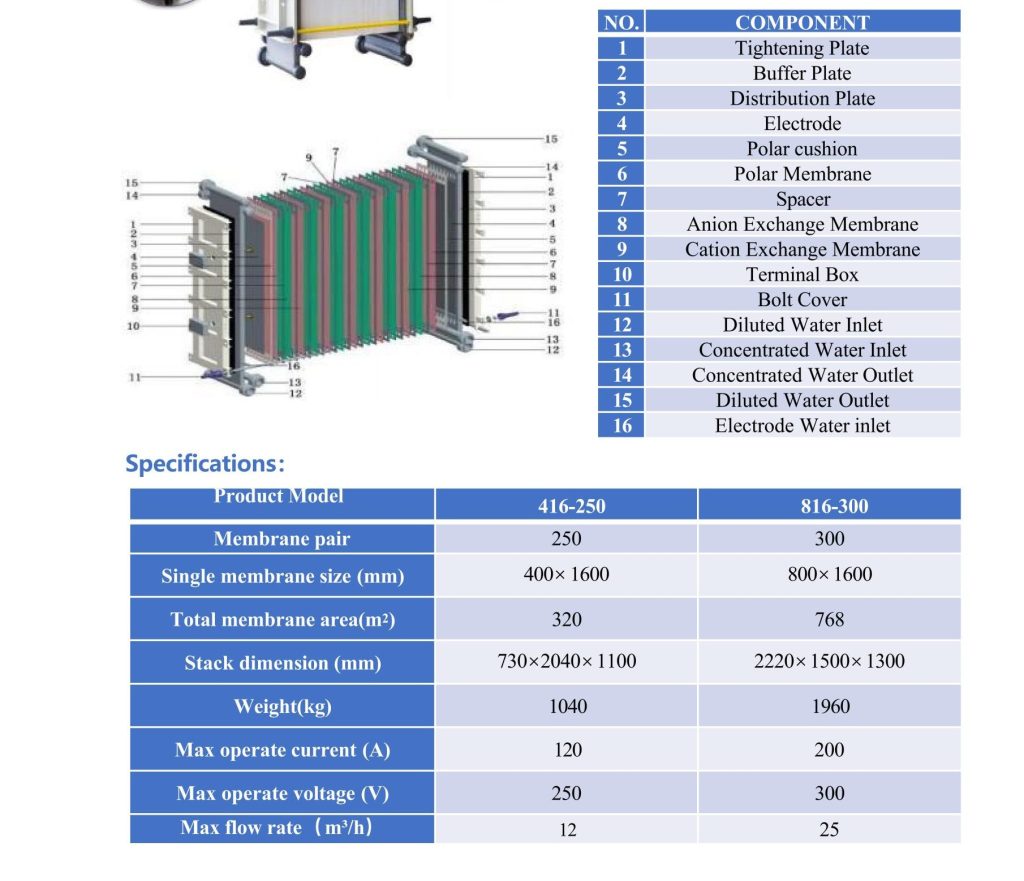

• Tightening Plate

• Buffer Plate

• Distribution Plate

• Electrode

• Polar cushion

• Polar Membrane

• Spacer

• Anion Exchange Membrane

• Cation Exchange Membrane

• Terminal Box

• Bolt Cover

• Diluted Water Inlet

• Concentrated Water Inlet

• Concentrated Water Outlet

• Diluted Water Outlet

• Electrode Water inlet
